OPTION PARTS FOR MBX-7R/8/7R
ECO/7TR/7TR ECO |
 |
 |
|
E2550 Front Damper Spring φ1.4 L70/8.0T
|
|
|
| P/N |
Description |
Hardness |
| E2550 |
Front Damper Spring φ1.4 L70/8.0T |
Soft |
| E2551 |
Front Damper Spring φ1.4 L70/7.75T |
↓ |
| E2552 |
Front Damper Spring φ1.4 L70/7.5T |
↓ |
| E2553 |
Front Damper Spring φ1.4 L70/7.25T |
↓ |
| E2554 |
Front Damper Spring φ1.4 L70/7.0T |
↓ |
| E2555 |
Front Damper Spring φ1.4 L70/6.75T |
Hard |
|
|
|
| The feature of new 1.4mm shock spring can be reduce the
car-roll and pitching |
| generated by steering and throttle operation as compare to
previous springs, and |
| it's possible to keep the vehicle position more flat. |
| Also the car becomes more stable at bumpy track. |
|
|
|
|
|
|

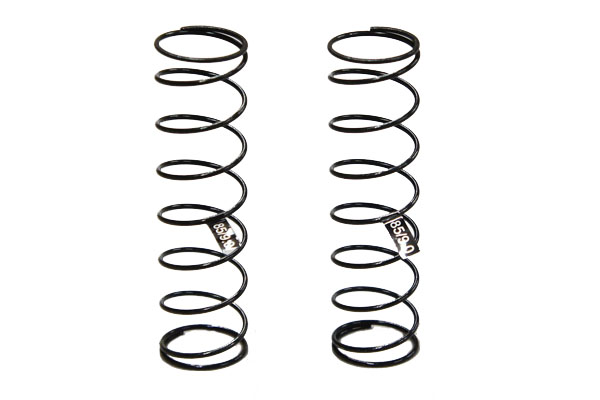

E2561 Rear Damper Spring φ1.4 L85/9.0T
|
|
|
| P/N |
Description |
Hardness |
| E2556 |
Rear Damper Spring
φ1.4 L85/9.0T |
Soft |
| E2557 |
Rear Damper Spring
φ1.4 L85/8.75T |
↓ |
| E2558 |
Rear Damper Spring
φ1.4 L85/8.5T |
↓ |
| E2559 |
Rear Damper Spring
φ1.4 L85/8.25T |
↓ |
| E2560 |
Rear Damper Spring
φ1.4 L85/8.0T |
↓ |
| E2561 |
Rear Damper Spring
φ1.4 L85/7.75T |
Hard |
|
|
|
|
|
|
|
|
1.4mm Shock springs chart
|
| |
MBX7R |
MBX7R
ECO |
MBX7TR |
MBXTR
ECO |
|
Front Spring |
Soft
↓
Hard |
8.0T |
E2550 |
○ |
|
|
|
| 7.75T |
E2551 |
○ |
|
|
|
| 7.5T |
E2552 |
○ |
|
|
|
| 7.25T |
E2553 |
○ |
○ |
○ |
|
| 7.0T |
E2554 |
|
○ |
○ |
○ |
| 6.75T |
E2555 |
|
○ |
|
○ |
|
Rear Spring |
Soft
↓
Hard |
9.0T |
E2556 |
○ |
|
|
|
| 8.75T |
E2557 |
○ |
|
|
|
| 8.5T |
E2558 |
○ |
|
|
|
| 8.25T |
E2559 |
○ |
○ |
○ |
|
| 8.0T |
E2560 |
|
○ |
○ |
○ |
| 7.75T |
E2561 |
|
○ |
|
○ |
|
|
|
|
|
|
|
